Boom operation precautions:
1、The outriggers must be fully extended and supported as required before the boom can be operated.
2、The boom cannot be used in thunderstorms or severe weather conditions, and the boom cannot be used in winds greater than level 8.
3、During the process of retracting and extending the boom, the operating sequence must be strictly followed, and blind linkage is strictly prohibited to prevent scratches or deformation caused by friction between the booms.
4、It is strictly forbidden for the boom to pass through toxic, explosive, and flammable pipelines such as gas, and a sufficient safety distance must be maintained.
5、When working near high-voltage lines, you must keep a distance of more than 5m from them.
6、Pedestrians are strictly prohibited from staying under the boom.
7、If the boom moves unexpectedly, the emergency stop button must be pressed immediately. The boom can only be used after the professional maintenance personnel find out the cause and eliminate it.
8、The boom operation must be carried out within the operator’s visual range.

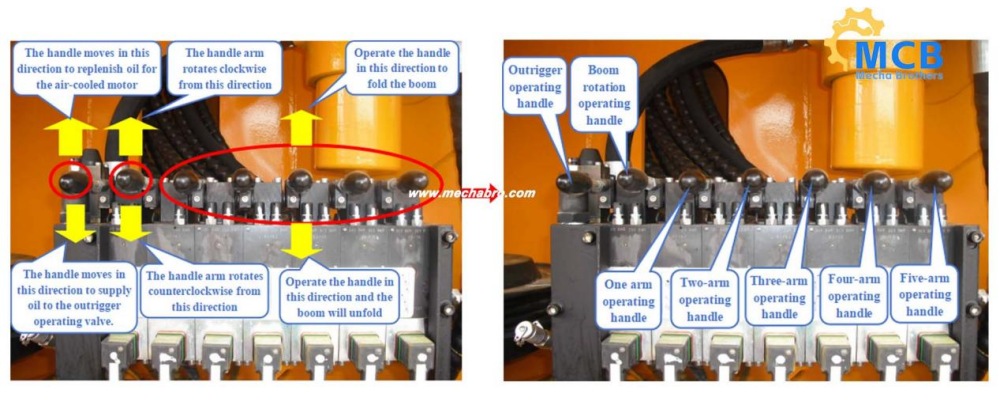

Proximity control boom operation：

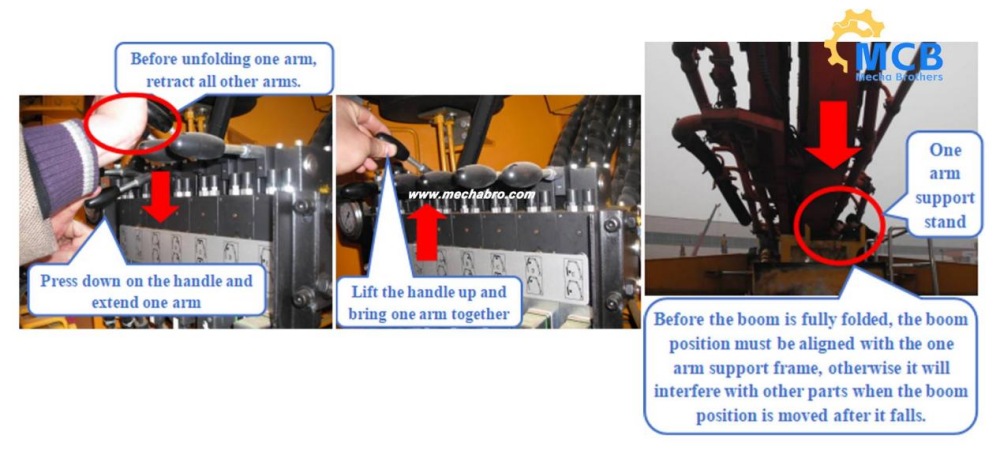

(3) One arm operation：

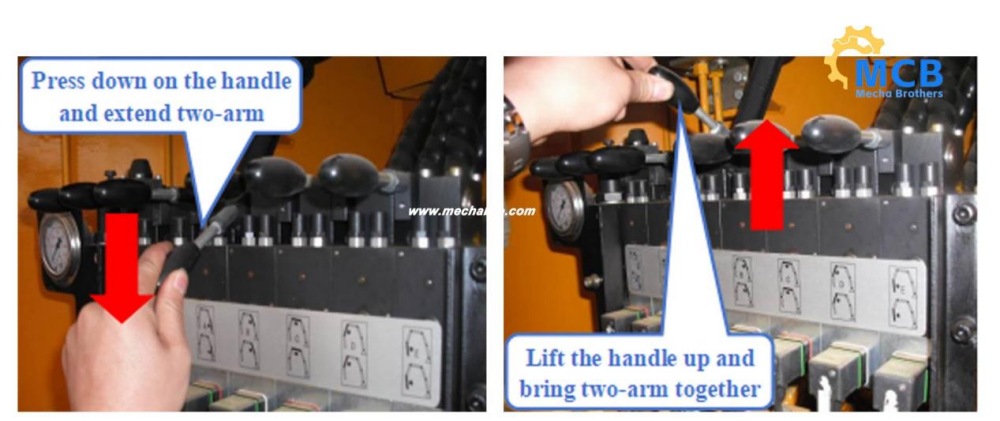

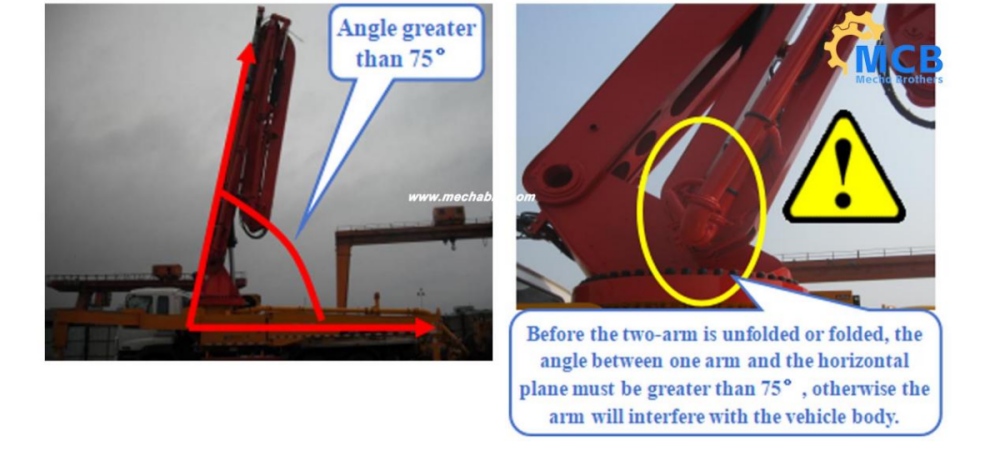

(4) Two-arm operation：

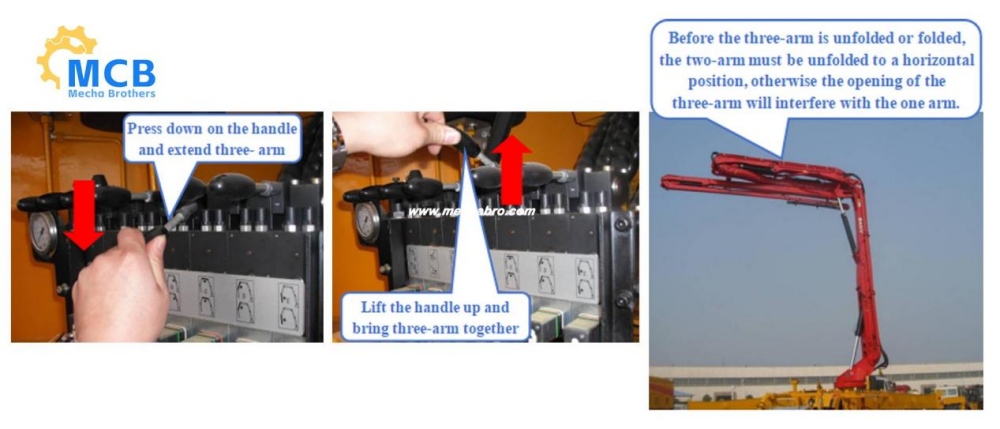

(5) Three-arm operation：

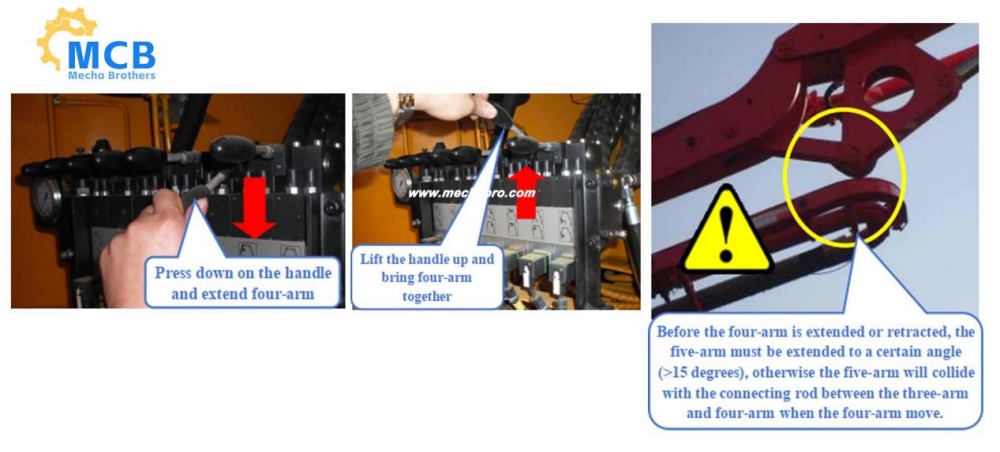

(6) Four-arm operation：

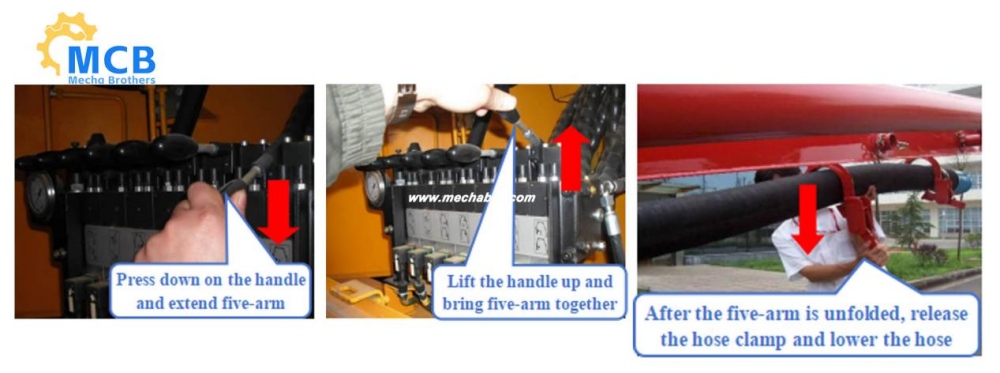

(7) Five-arm operation：

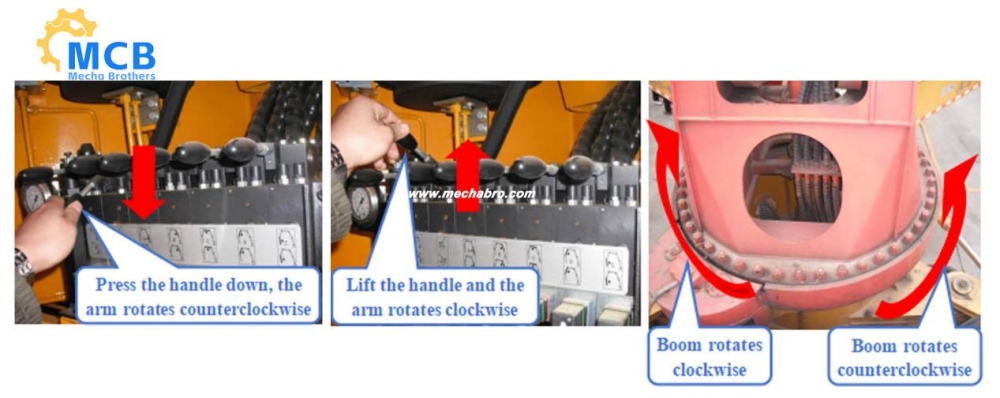

(8) Boom rotation operation:
Tip：
When the proximity control boom is operated, the proximity control speed of the boom is slow because the engine is in idling state. If there are special requirements and the boom speed needs to be accelerated, it can be achieved by appropriately increasing the engine speed
